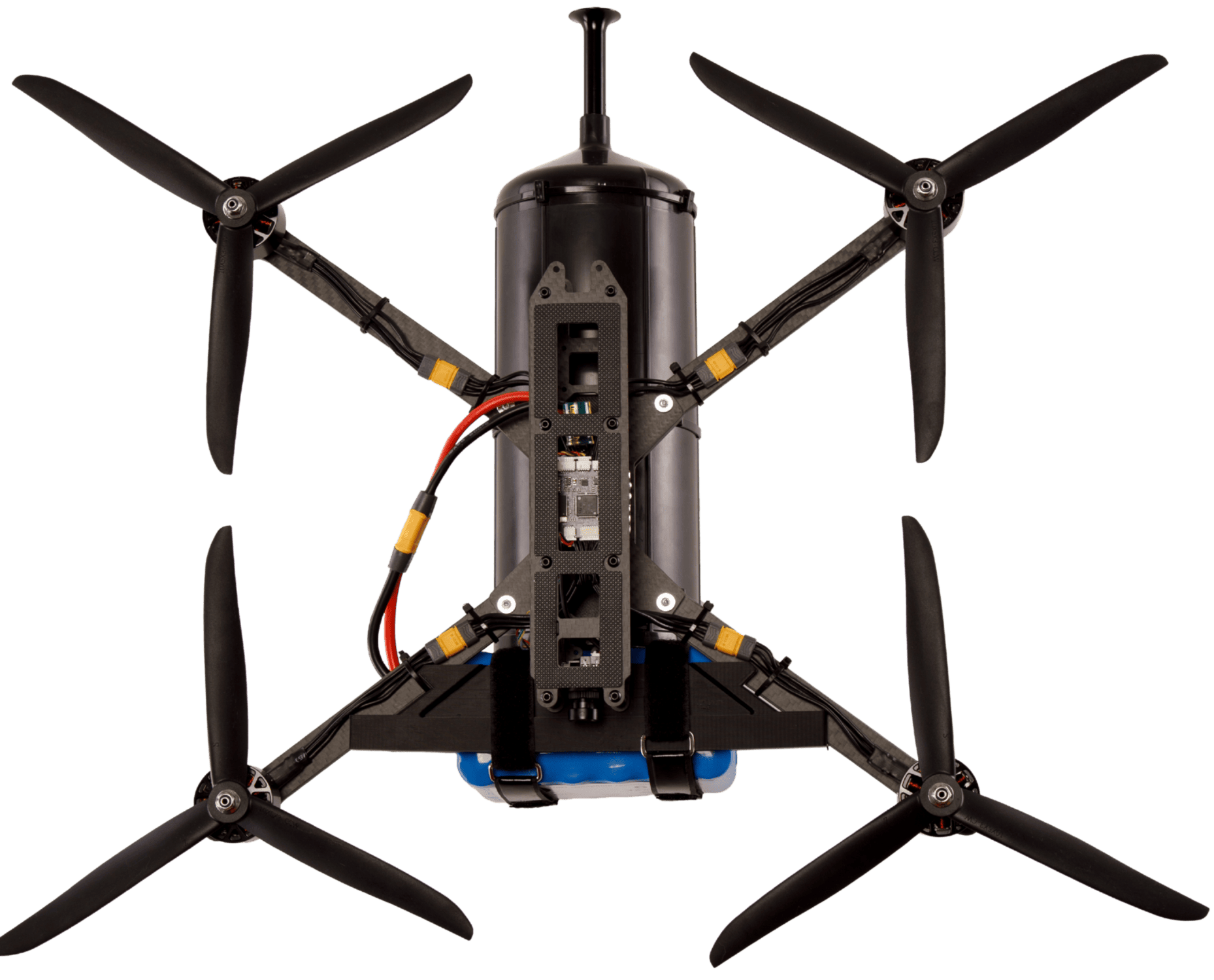

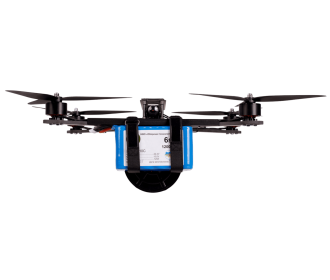

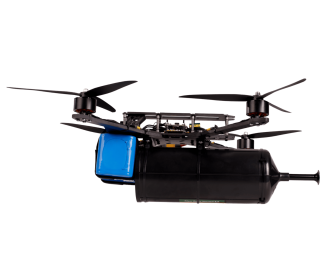

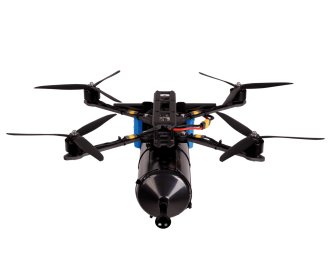

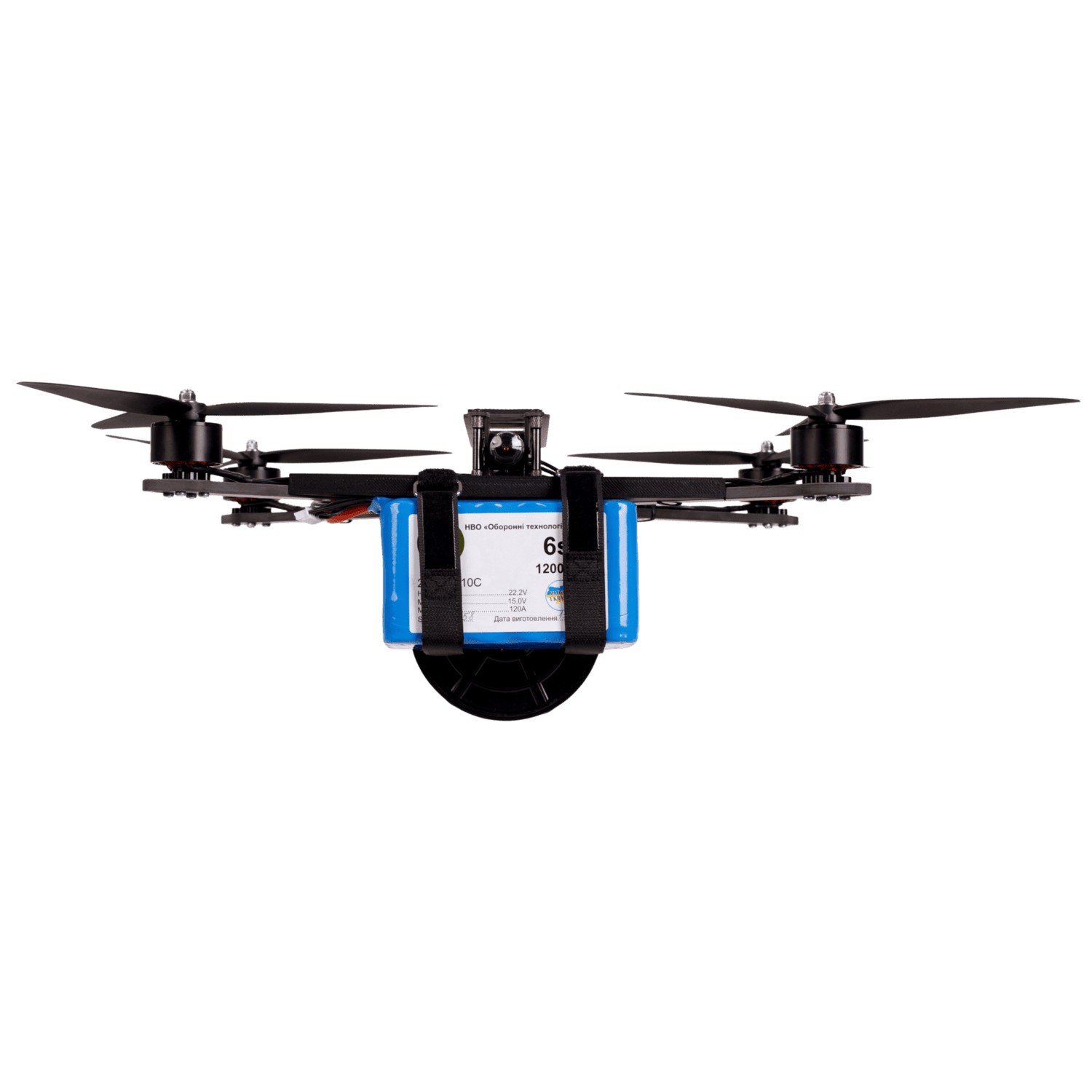

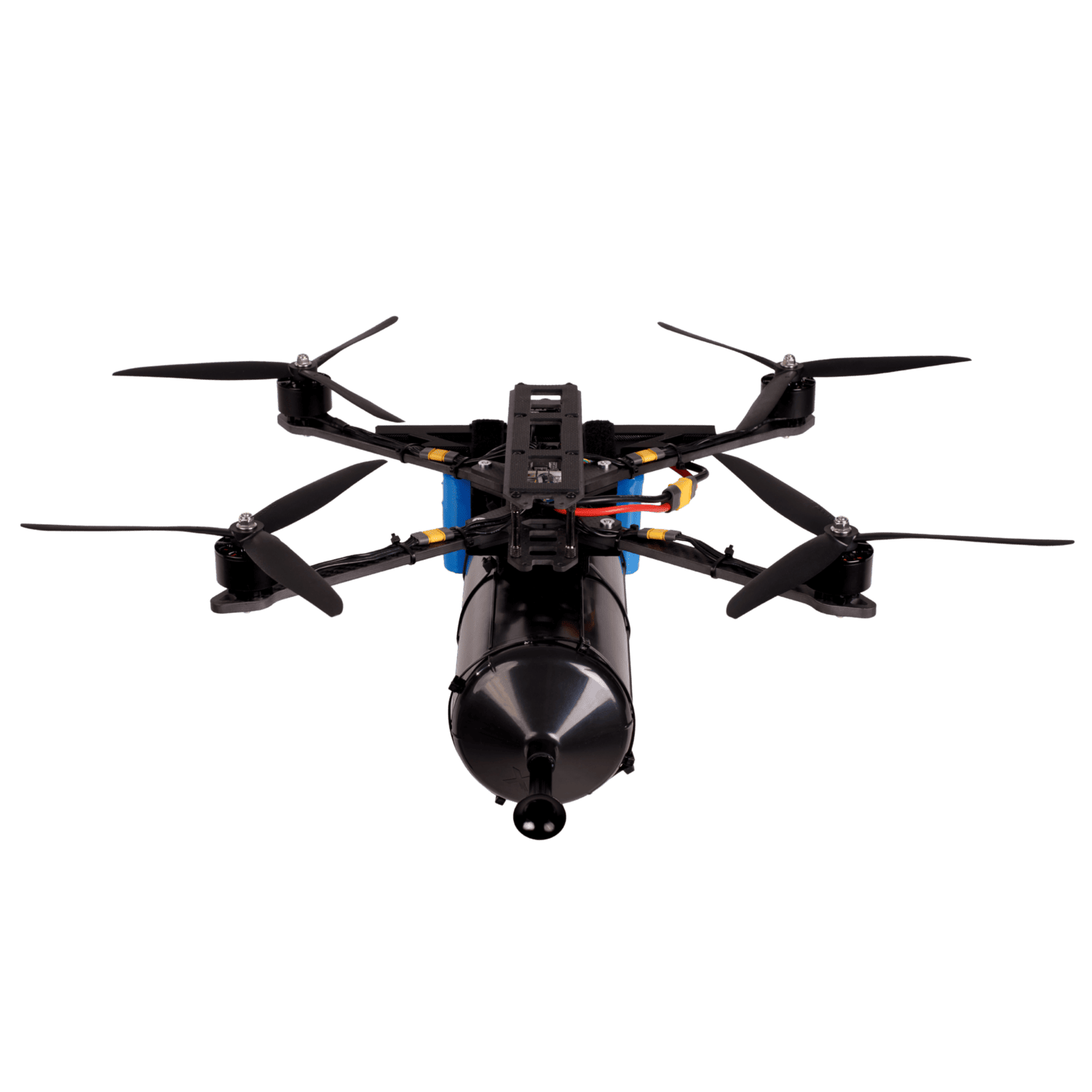

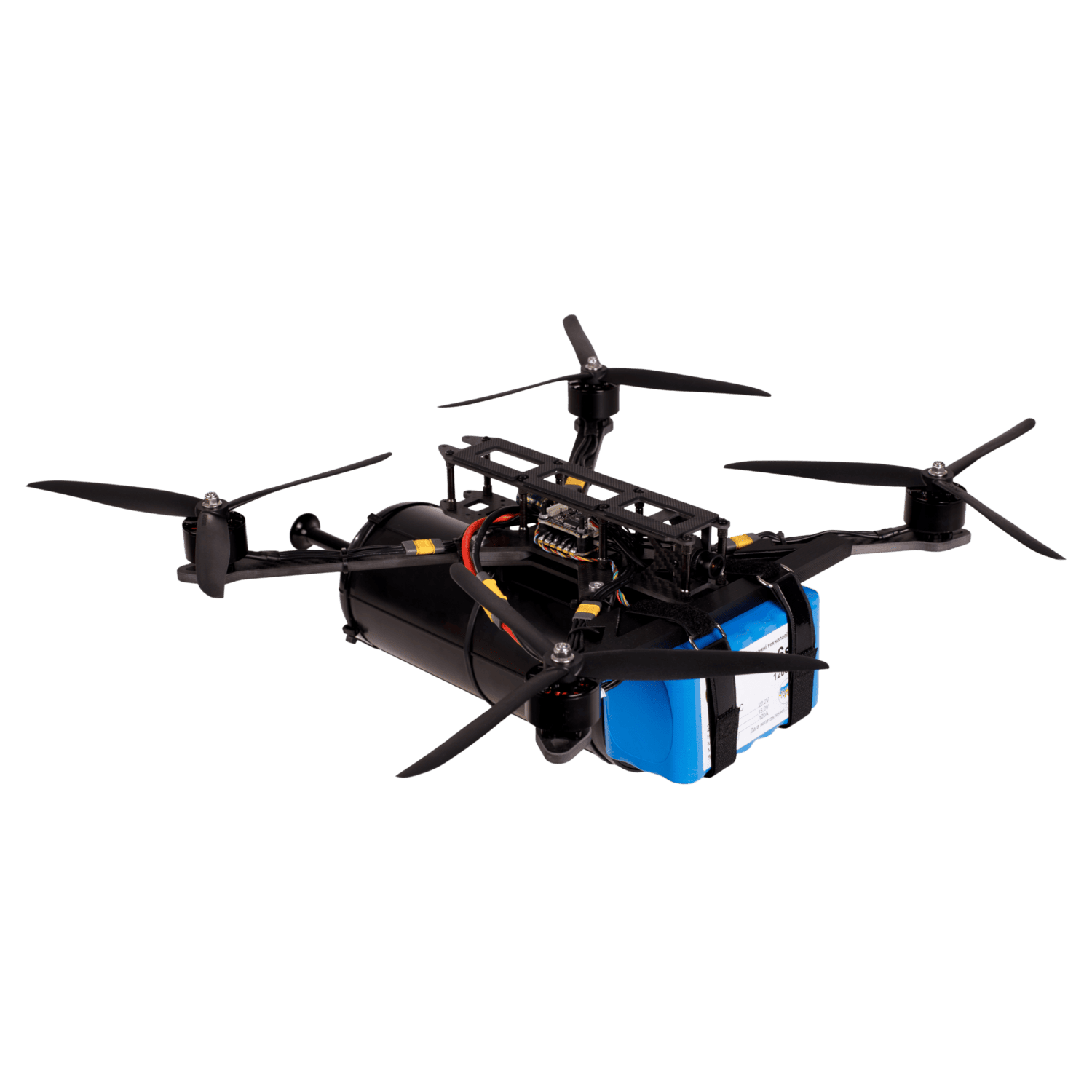

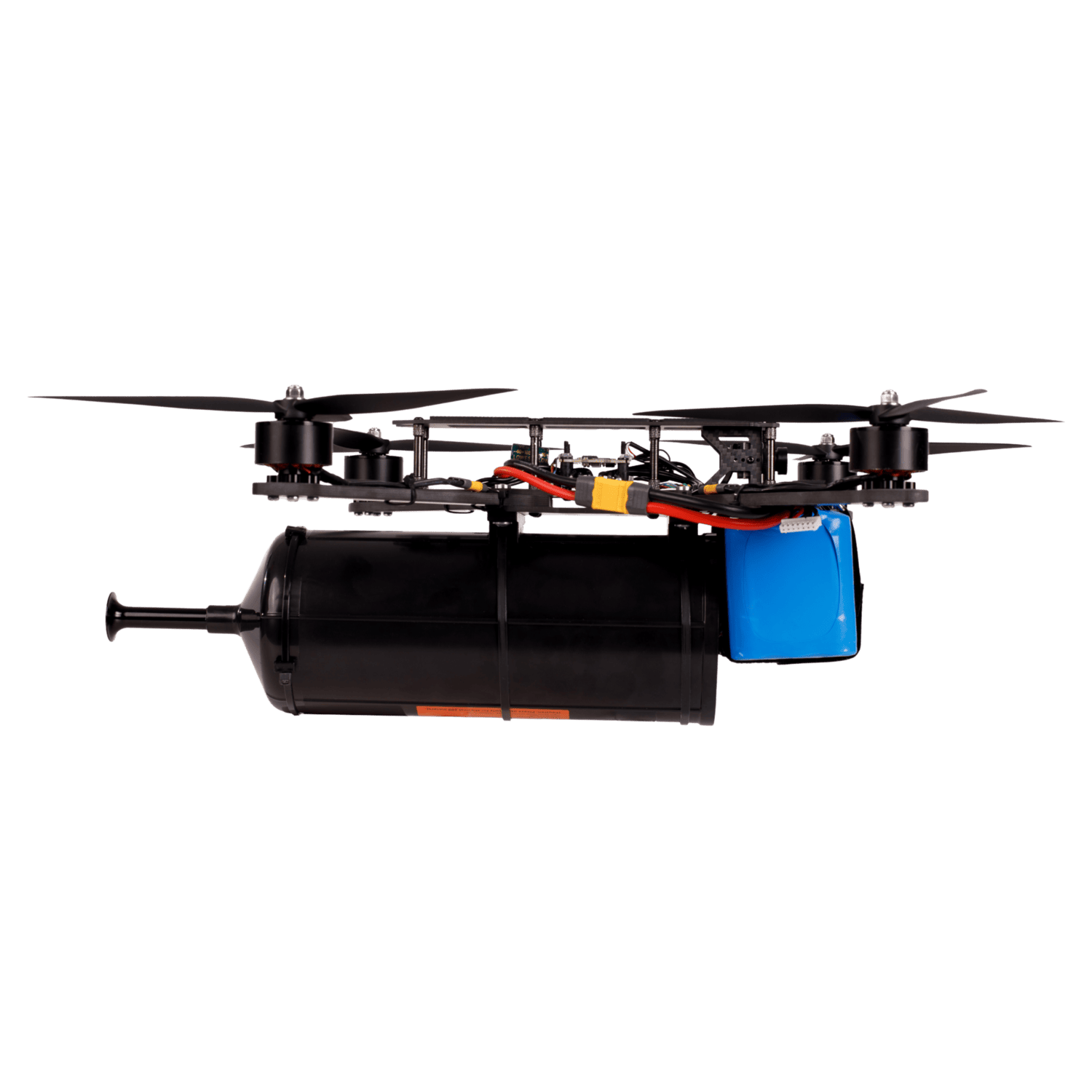

UNMANNED AVIATION COMPLEX OTU-10
FPV-дрон на оптоволокні
REB protected

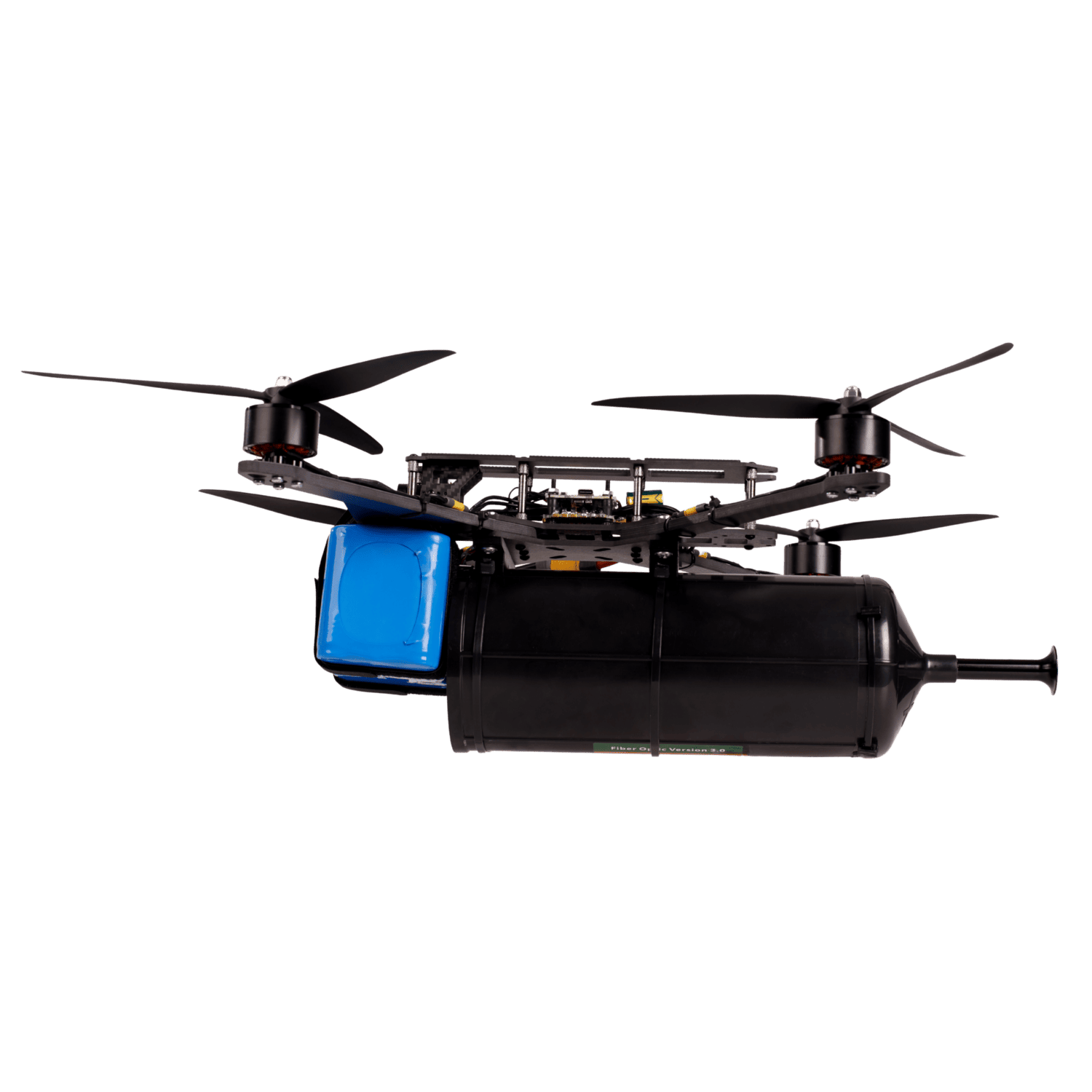

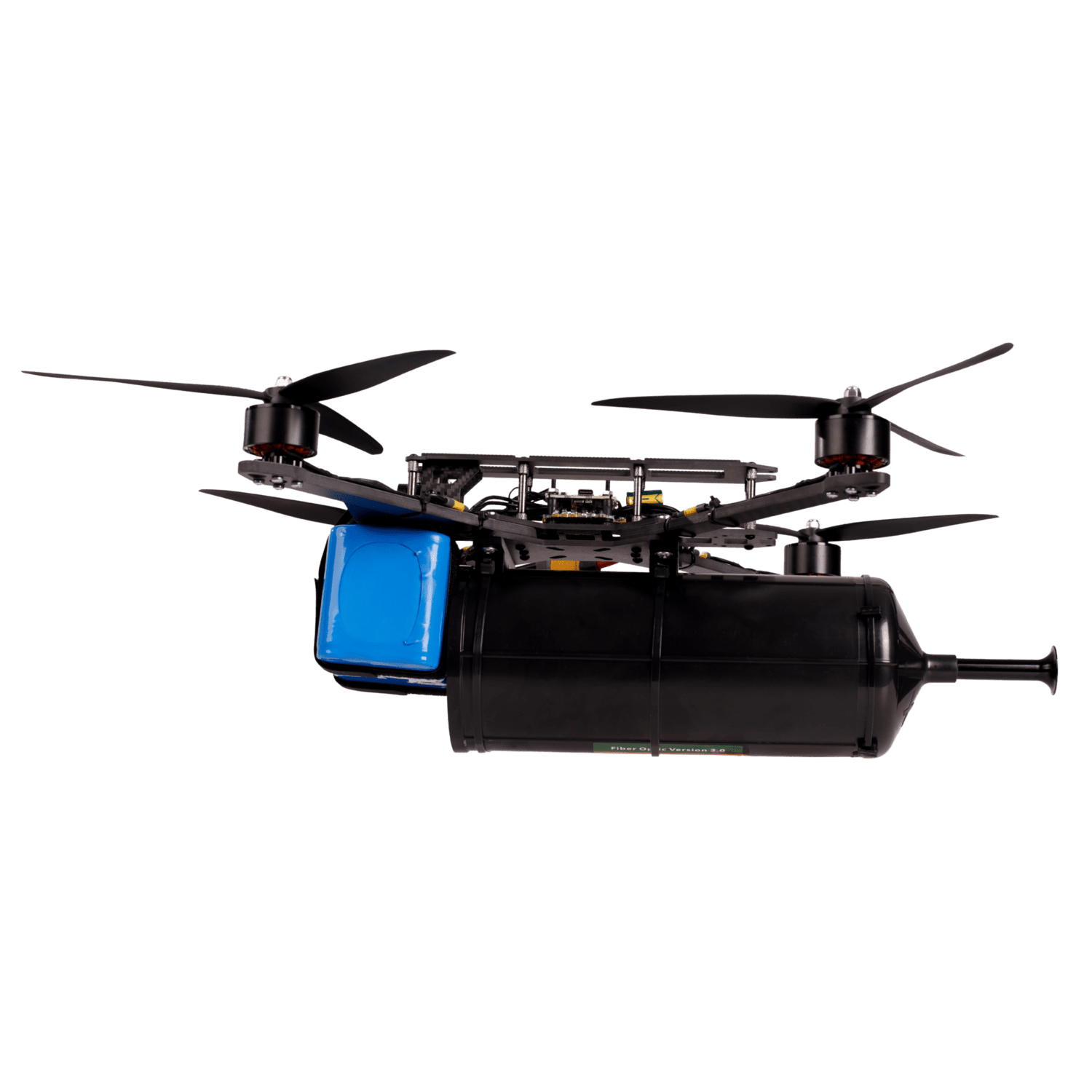

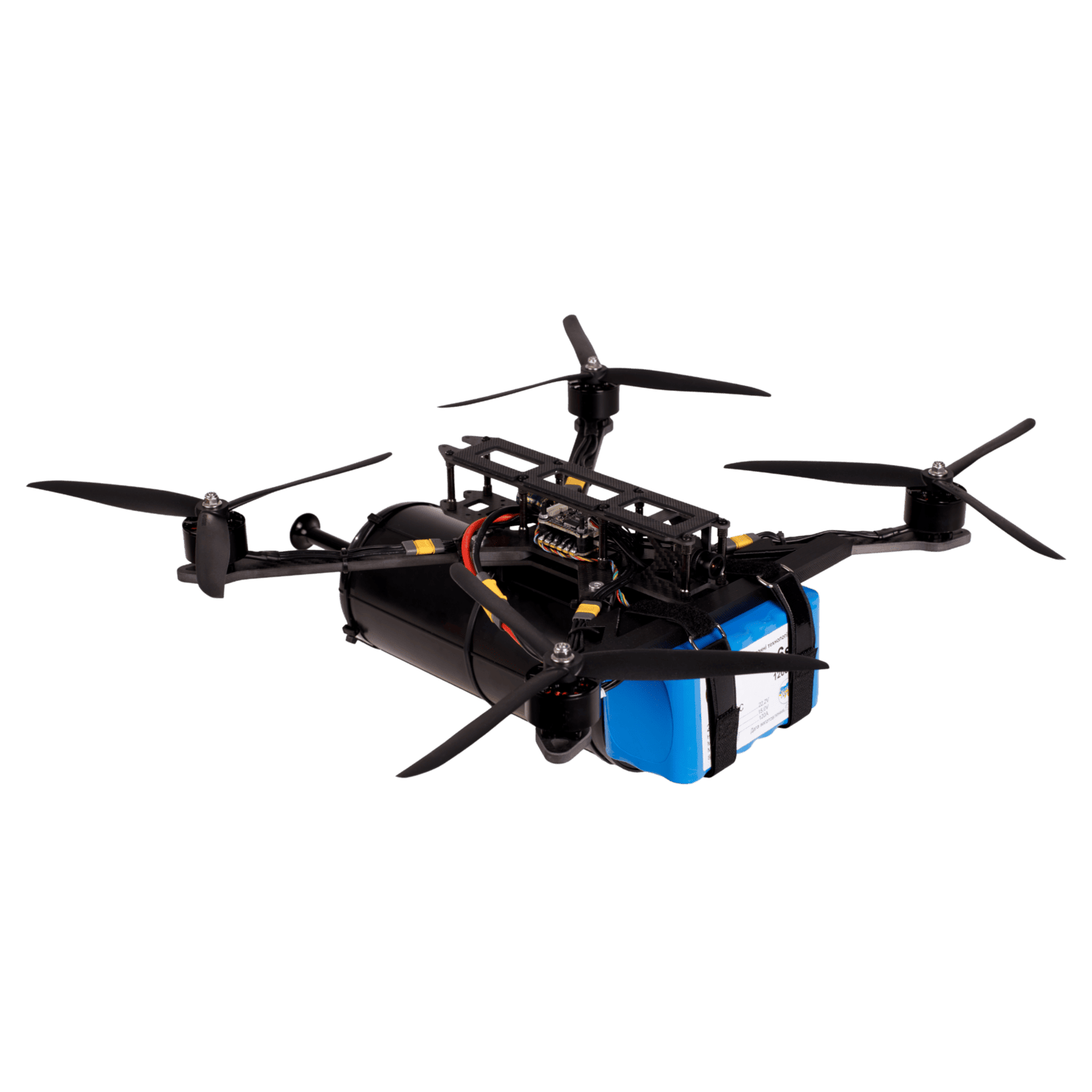

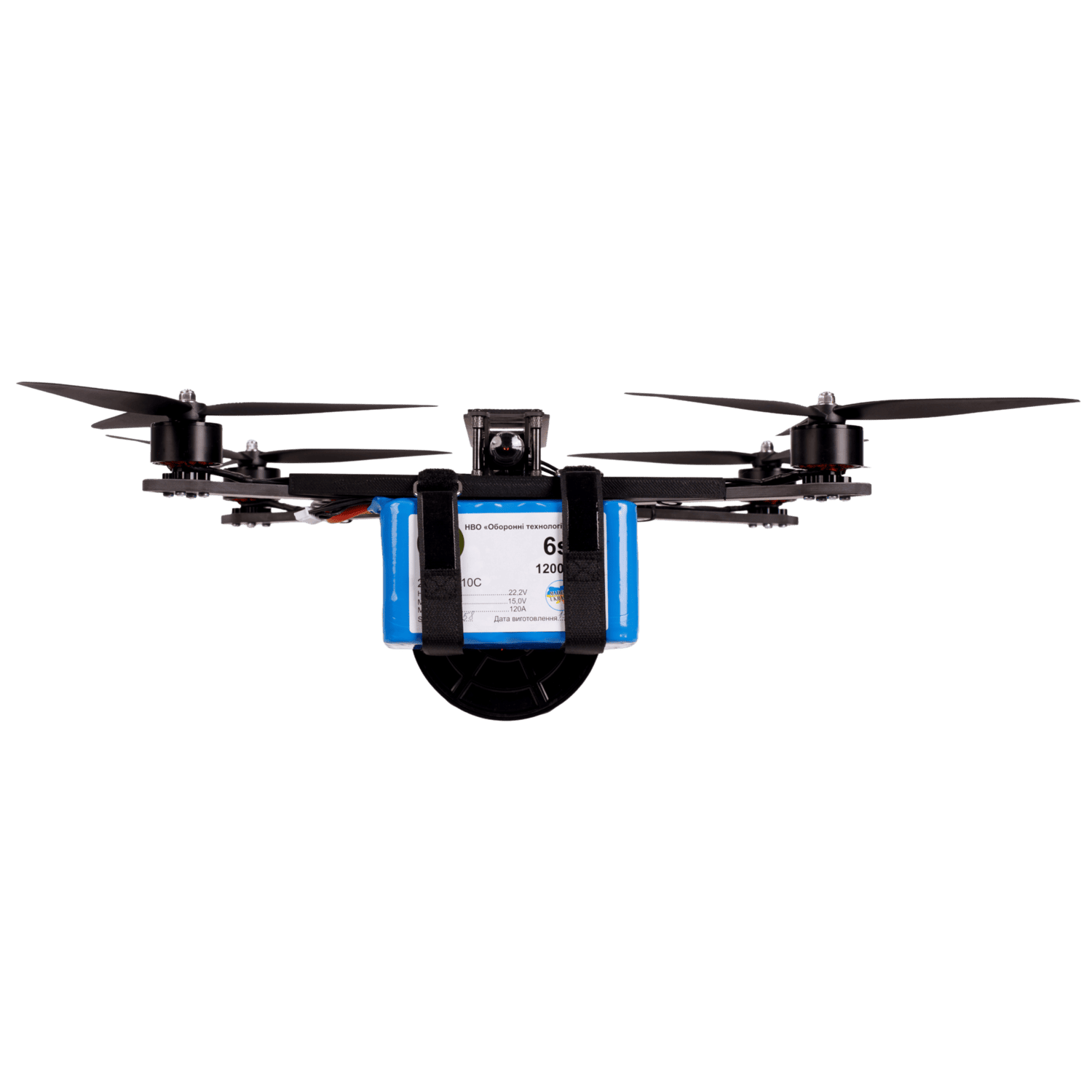

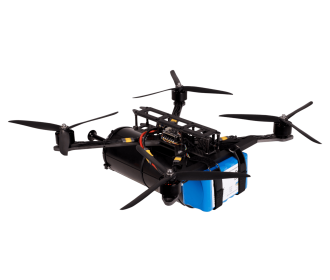

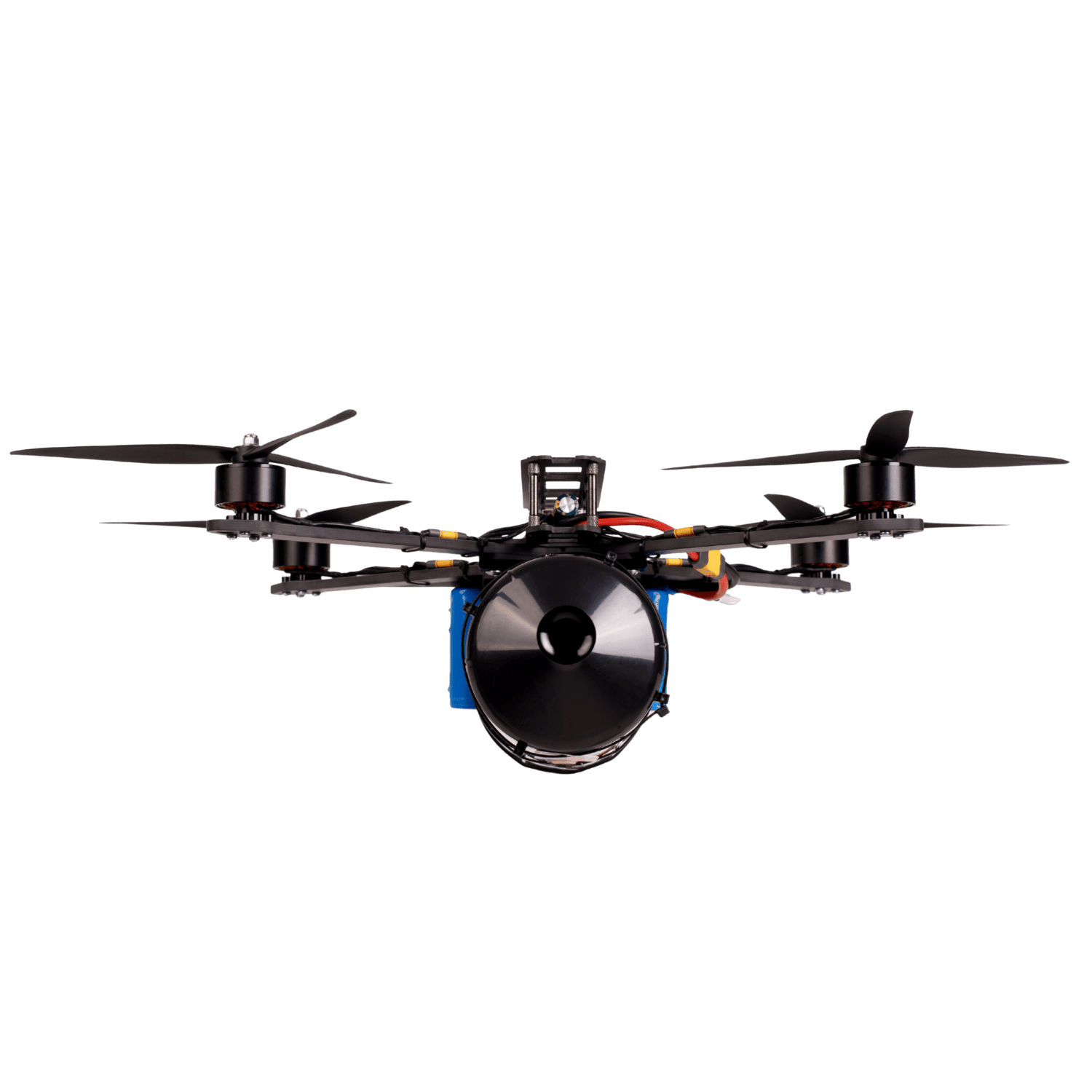

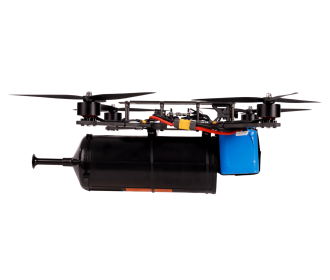

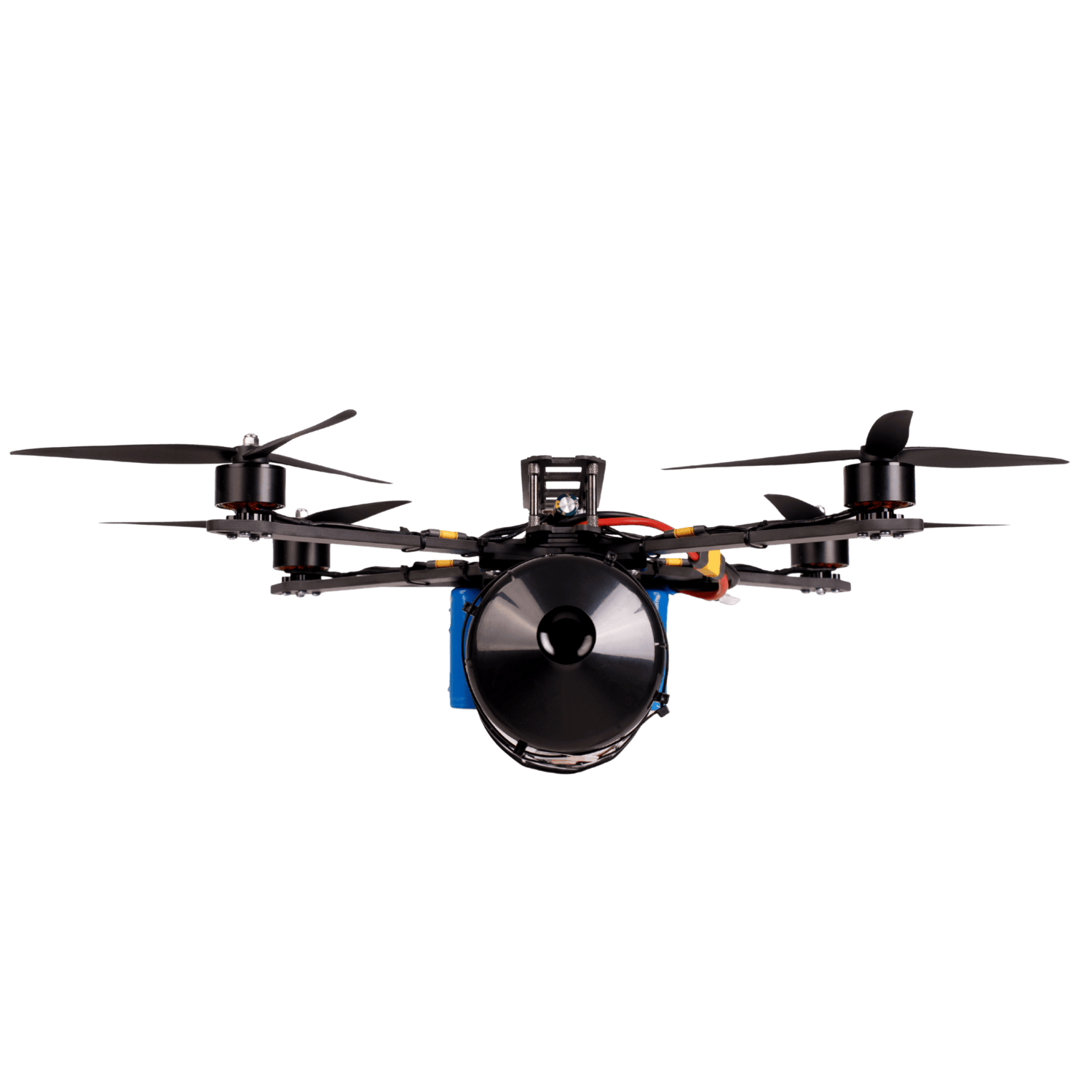

The OTU-10 unmanned aerial vehicle complex is a light and mobile reconnaissance and strike UAV designed to perform tactical missions in combat conditions. Due to its compact size, rapid deployment, and high maneuverability, the complex provides effective surveillance and engagement of targets at medium distances.
Maximum flight range
Up to 10 km
Maximum flight altitude
Up to 600 m
Maximum flight speed
Up to 80 km/h
33500 ₴
-
Maximum flight range 10 km Maximum flight duration with payload 12 min Flight altitude (maximum) up to 600m Flight speed (maximum) 80 km/h Opto-electronic reconnaissance equipment Video camera Target detection and recognition range 150 m UAV deployment time 5 min 33 sec BpAK folding time 4 min 3 sec Preparation time for the next flight 30 sec Stress Within the operator's physical capabilities R.m. deviation from the target up to 1.0 m Probability of hitting a typical target not less than 0.8 Maximum take-off weight 5,350 kg ± 10% Payload weight up to 2 kg Channel characteristics (control line) Fiber optic (10 km) Dimensions (without propellers) 370 mm (width),315 mm (length),55 mm (height) Possibility of operation in EW conditions Yes Operating range Temperature: -20 to +60°C; Wind speed: up to 10 m/s; Humidity: up to 90% -
Рама 10 дюймів 1 шт Електричний двигун 4 шт Плата регулятора обертів електромоторів 1 шт Пропелер (комплект трилопатевих пропелерів) 4 шт Політний контролер 1 шт Гніздо подачі живлення 1 шт Батарея живлення 1 шт Котушка оптичного волокна 10 км 1 шт Плата ініціації 1 шт -
